‎PLC_PRG‎ uygulama

PROGRAM PLC_PRG
VAR_INPUT

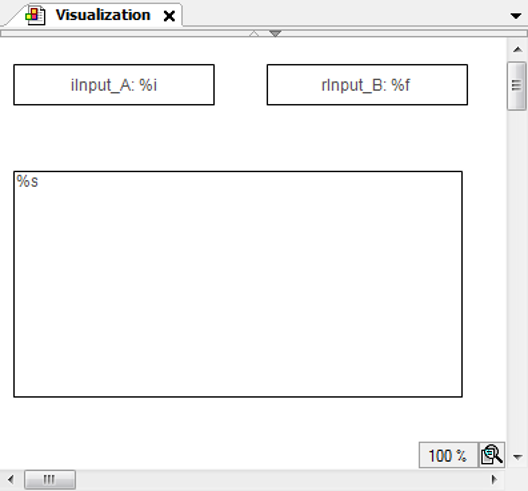

	iInput_A:INT;  (* Used in the visualization as user input variable*)
	rInput_B:REAL; (* Used in the visualization as user input variable*)
	stInfo : STRING;  (* Informs about the user input via the edit control field;
		String gets composed by method 'VariableWritten;
		Result is displayed in the lower rectangle of the visualization *)
END_VAR
VAR
	inst : POU;
	bFirst : BOOL := TRUE;
END_VAR

IF bFirst THEN
	bFirst := FALSE;
	VisuElems.Visu_Globals.g_VisuEventManager.SetEditBoxEventHandler(inst);
	(* Call of method VariableWritten *)
END_IF

‎POU‎ uygulama

FUNCTION_BLOCK POU IMPLEMENTS VisuElems.IEditBoxInputHandler
(* no further declarations, no implementation code *)

‎VariableWritten‎ yöntemine atanmıştır ‎POU‎

METHOD VariableWritten : BOOL
(* provides some information always when an edit control field is closed in the visualization, that is a variable gets written by user input in one of the upper rectangles *)
VAR_INPUT
	pVar : POINTER TO BYTE;
	varType : VisuElems.Visu_Types;
	iMaxSize : INT;
	pClient : POINTER TO VisuElems.VisuStructClientData;
END_VAR

// String stInfo, which will be displayed in the lower rectangle, is composed here
PLC_PRG.stInfo := 'Variable written; type: ';
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, INT_TO_STRING(varType));
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, ', adr: ');
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, DWORD_TO_STRING(pVar));
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, ', by: ');
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, SEL(pClient^.globaldata.clienttype = VisuElems.Visu_ClientType.Targetvisualization,'other visu', 'targetvisu'));

‎PLC_PRG‎ programının uygulanması

PROGRAM PLC_PRG
VAR_INPUT
	stInfo : STRING;
END_VAR
VAR
	inst : POU;
	bFirst : BOOL := TRUE;
END_VAR

IF bFirst THEN
	bFirst := FALSE;
	VisuElems.Visu_Globals.g_VisuEventManager.SetKeyEventHandler(inst);
END_IF

‎POU‎ fonksiyon bloğunun uygulanması

FUNCTION_BLOCK POU IMPLEMENTS VisuElems.IKeyEventHandler
(* no further declarations, no implementation code *)

‎POU‎ fonksiyon bloğunun ‎VariableWritten‎ yönteminin uygulanması

/// This method will be called after a key event is released.
/// RETURN:
/// TRUE - When the handler has handled this event and it should not be handled by someone else
/// FALSE - When the event is not handled by this handler
METHOD HandleKeyEvent : BOOL
VAR_INPUT
	/// Event type. The value is true if a key-up event was released.
	bKeyUpEvent : BOOL;
	/// Key code
	dwKey : DWORD;
	/// Modifier. Possible values:
	/// VISU_KEYMOD_SHIFT : DWORD := 1;
	/// VISU_KEYMOD_ALT : DWORD := 2;
	/// VISU_KEYMOD_CTRL : DWORD := 4;
	dwModifiers : DWORD;
	/// Pointer to the client structure were the event was released
	pClient : POINTER TO VisuStructClientData;
END_VAR
VAR
END_VAR

PLC_PRG.stInfo := 'KeyEvent up: ';
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, BOOL_TO_STRING(bKeyUpEvent));
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, ', key: ');
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, DWORD_TO_STRING(dwKey));
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, ', modifier: ');
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, DWORD_TO_STRING(dwModifiers));
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, ', by: ');
PLC_PRG.stInfo := CONCAT(PLC_PRG.stInfo, SEL(pClient^.globaldata.clienttype =
                                             VisuElems.Visu_ClientType.Targetvisualization,
																																													'other visu', 'targetvisu'));
